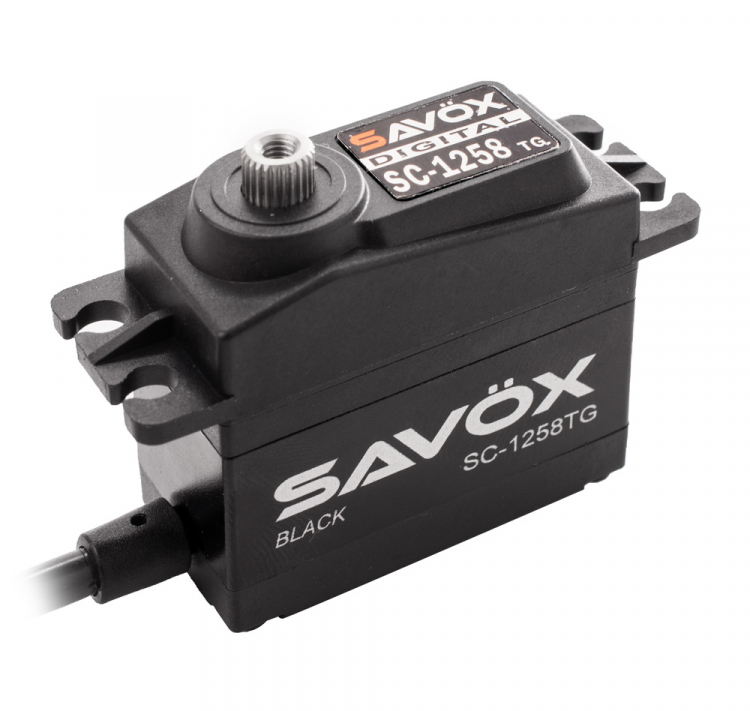

SC-1258TG Servo 12Kg 0,08s Coreless Black Edition

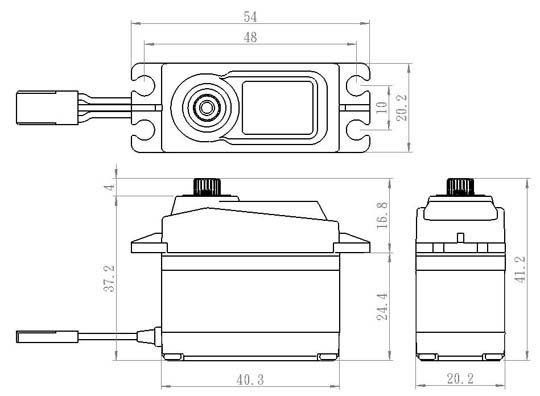

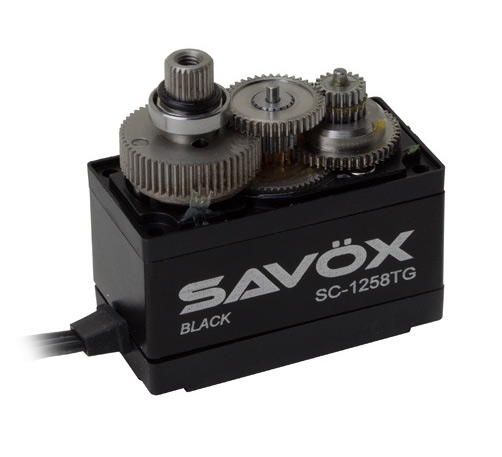

SAVÖX SC-1258TGBE - Titanium-Geared High-Speed Digital Standard-Sized Servo The SC1258TG-BE combines leading edge technology with super high 12-bit (4096) resolution and an all black color for s stealth look in RC cars. Features: Extremely strong titanium gears ensure long-life, durability and light weight Sleek black design with laser etching and a shorter 200mm black lead wire Ideal for CCPM on 600 and 700 class heli & steering servo on 1/10 scale buggies Aluminum middle case allows for cooler operating temperatures Specifications: Torque @ 4.8V: 9.6kg/cm Torque @ 6V: 12kg/cm Speed @ 4.8V: 0.10 sec/60 deg Speed @ 6V: 0.08 sec/60 deg Dimensions L x W x H: 40.8 x 20.2 x 37.2mm Weight: 64g Technical Details: Operating Temperature: -10° to 50°C Running Current (no load): 100mA @4.8V, 120mA @6.0V Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V Idle Current: 5mA @4.8V, 5mA @6.0V Wire Length: 250 +/- 5mm Output Gear Spline: 25 Tooth Bearings: 2BB Operating Travel: 100° (1000 → 2000 µ second) Neutral Position: 1500 µ second Pulse Width Range: 800 → 2200 µ second Maximum Travel: Appx 130° (900 → 2100 µ second) Refresh Rate: 333 Hz Motor Type: Coreless
