Beskrivning
Art.nr: 700201

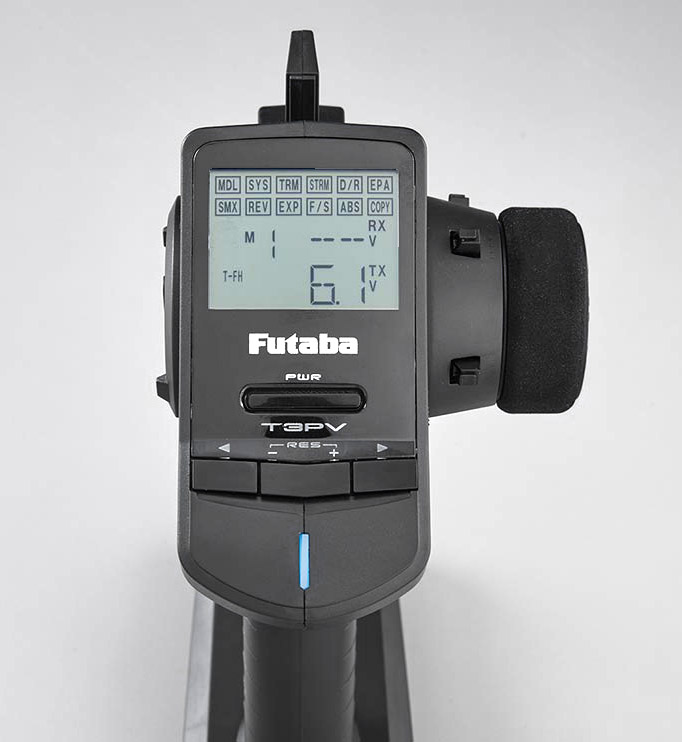

Hold the 3PV in your hand, and instantly feel how lightweight it is. Access the programming menu on the easy-to-read screen, and see how sophisticated it is. Experience the 3PV's super-fast response rate, and realize that you're in command of the system that can make a real difference on race day. You also get FHSS, S-FHSS and T-FHSS protocols, making it one of R/C's most versatile surface system. The 3PV is available with a high-voltage R203GF receiver that's an ideal match for brushless ESCs and digital servos.
T3PV Features:
System: FHSS, S-FHSS & T-FHSS 2.4GHZ (T-FHSS / Telemetry only available with the optional R304SB(-E) receiver)
3+1 Channels (the 4:th channel can only be used when 4WS mixing (crawlers) or Brake mixing and with a 4-channel receiver)
Channel 3 can be used on SW1 (two endpoints) or at DT3 where the D/R normally is at (stepped function)
10 Model Memory
4-Character Model Name
Sub-Trim (CH1-4)
Channel-4 Trim (only visible if 4WS or Brake Mixing is activated)
Steering Dual Rates (D/R)
Steering End Point Adjustement (EPA-CH1)
Throttle End Point Adjustement (EPA-CH2)
Channel-3 End Point Adjustement (EPA-CH3)
Channel-4 End Point Adjustement (EPA-CH4) - this is only displayed when 4WS or Brake Mixing is activated
4-Wheel-Steering / Brake Mixing (SMX) (booth mixers can't be used at the same time)
Sero Reverse (CH1-4)
Steering Exponential (EXP-CH1)
Throttle Exponential (EXP-CH2)
Throttle Fail-Safe (F/S)
ABS Brakes (3- cycle speeds available)
Model Data Copy
Auto Power-Off after 10 minutes
Low Battery Alarm:
4x AA alkaline batteries - set LBA @ 4.2V
5 cell (6V) NiMH - set LBA @ 5.0V
2S (6.6V) LiFe - set LBA @ 5.8V
Available T-FHSS Telemetry Functions when using the R304SB(-E) receiver (not included):
Receiver battery voltage (no sensor needed)
External voltage (if this sensor is used the receiver battery voltage is not visible on the TX LCD) - SBS-01V
No other telemetry sensors can be used
Suitable Receivers:
R203GF S-FHSS (included)
R304SB(-E) T-FHSS (optional) - Use only Futaba Digital & BLS servos
Optional TX Batteries:

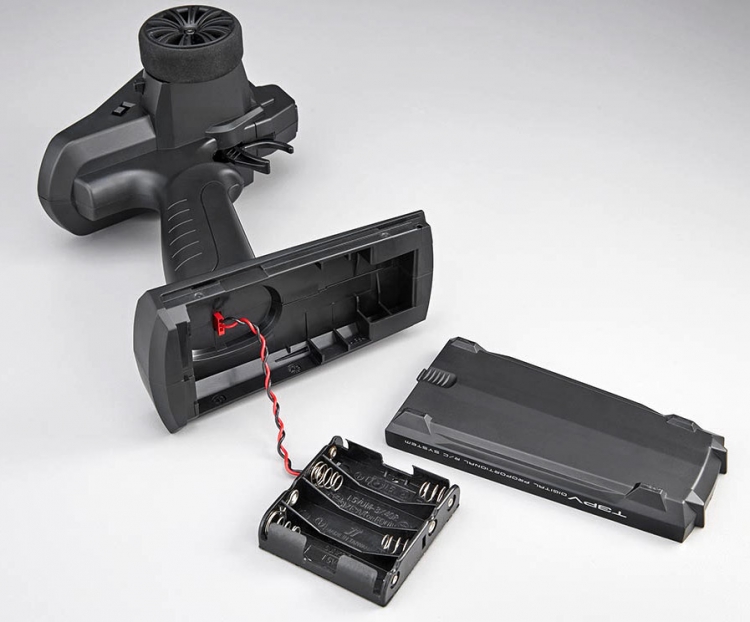

4x AA alkaline batteries (battery holder included)
YT1800A (5 Cell NiMH)
HT5F1800B / FPEBA0142 (5 Cell NiMH)
FT2F1700B / FPEBA0140 (2S 6.6V LiFe)
FT2F2100B / FPEBA0135 (2S 6.6V LiFe)

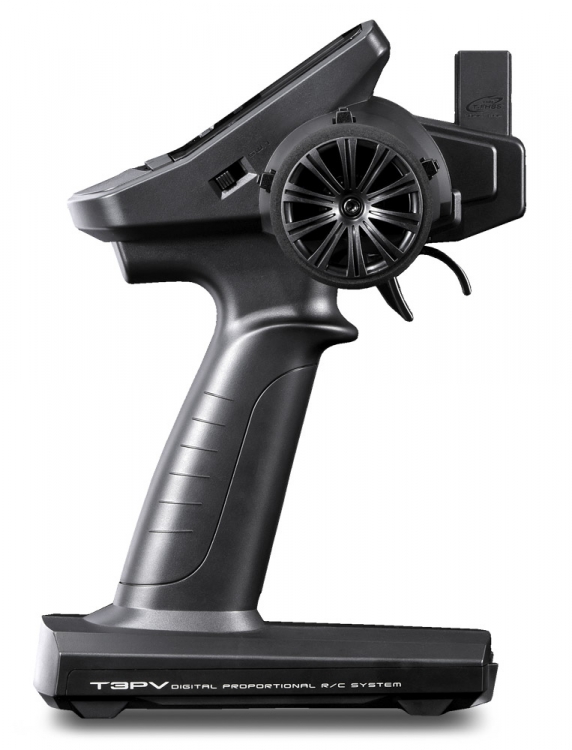

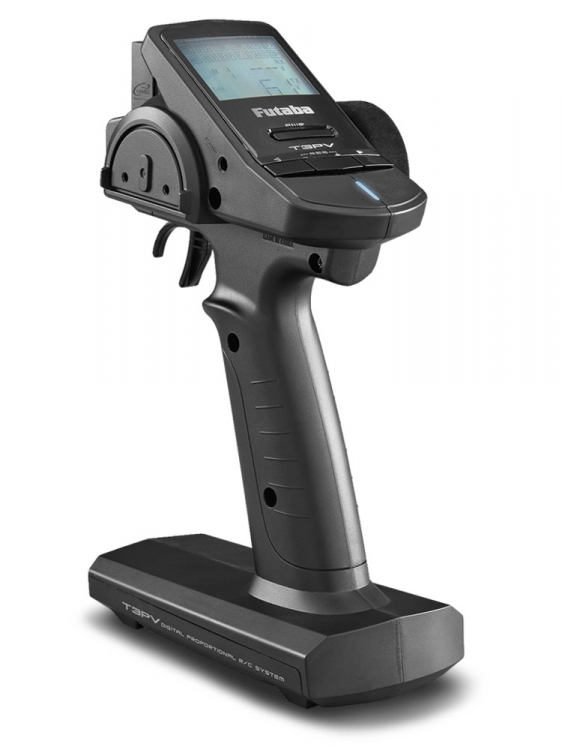

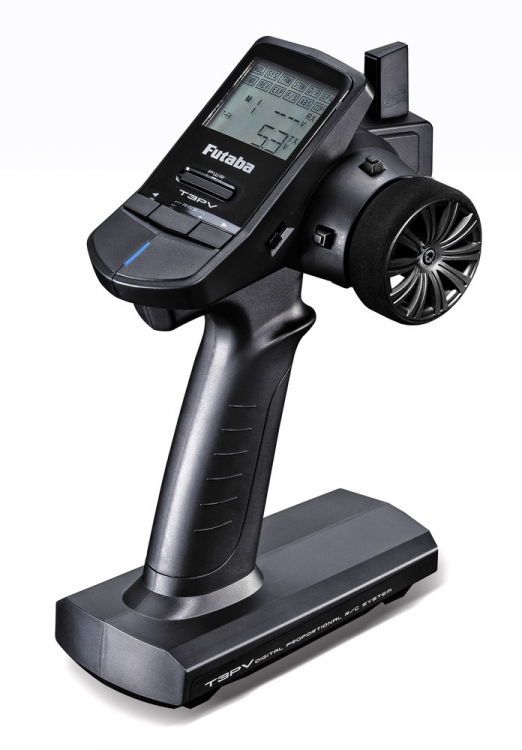

T3PV-2.4G Transmitter:
FHSS/S-FHSS/T-FHSS* system
Wheel type
3+1 channels (the 4th channel is used for mixing functions only)
Transmitting frequency: 2.4GHz band
Power requirement: Size AA Dry cell battery x 4 (6V) (or 5-cell NiMH / 2-cell LiFe)
Current drain: 100mA or less
Transmission antenna: 1/2λ di-pole (Built-in)

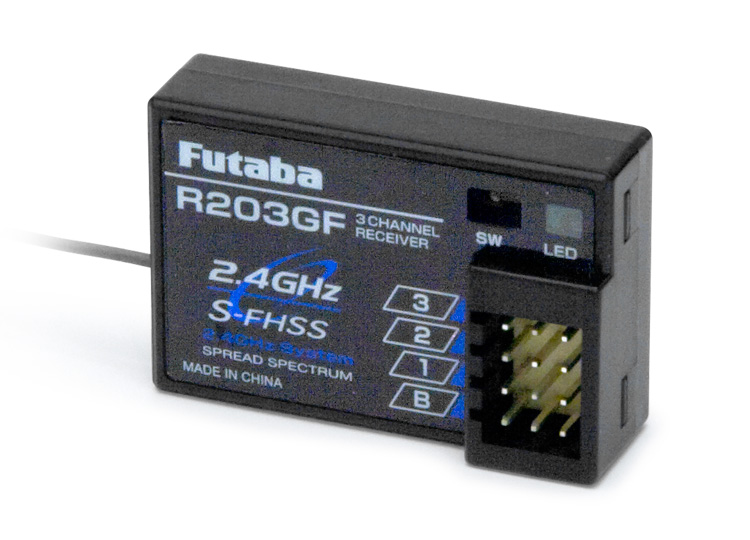

Receiver R203GF (included):
3 channels
S-FHSS/FHSS auto detection system
Power requirement: 4.8V ~7.4V battery (Dry cell battery cannot be used)
Size: 39 x 26 x 10 mm (excluding a projection part)
Weight: 8 g
Receiver R304SB(-E) (optional):
T-FHSS system
4 channels
Power requirement: 4.8V ~7.4V battery (Dry cell battery cannot be used.)
Size: 35.1 x 23.2 x 8.5 mm (excluding a projection part)
Weight: 6.6 g
