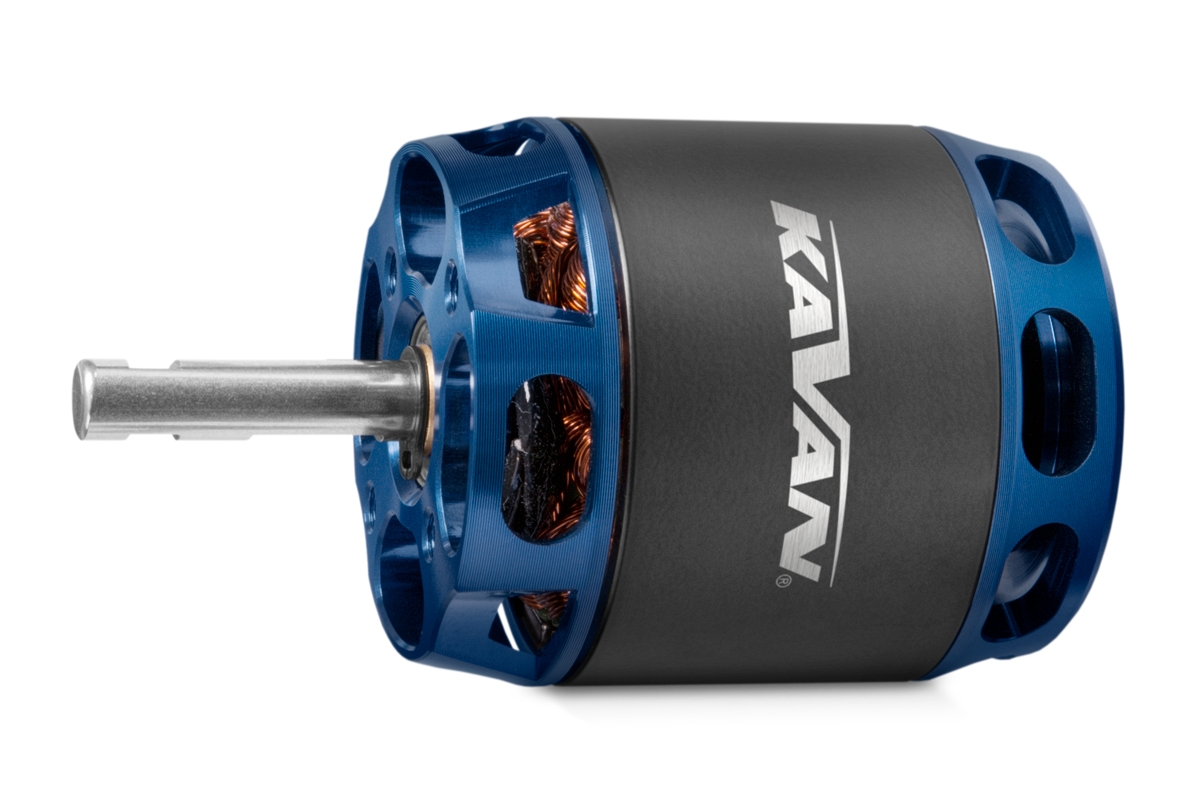

Motor Kavan Pro borstlös 2836 850Kv

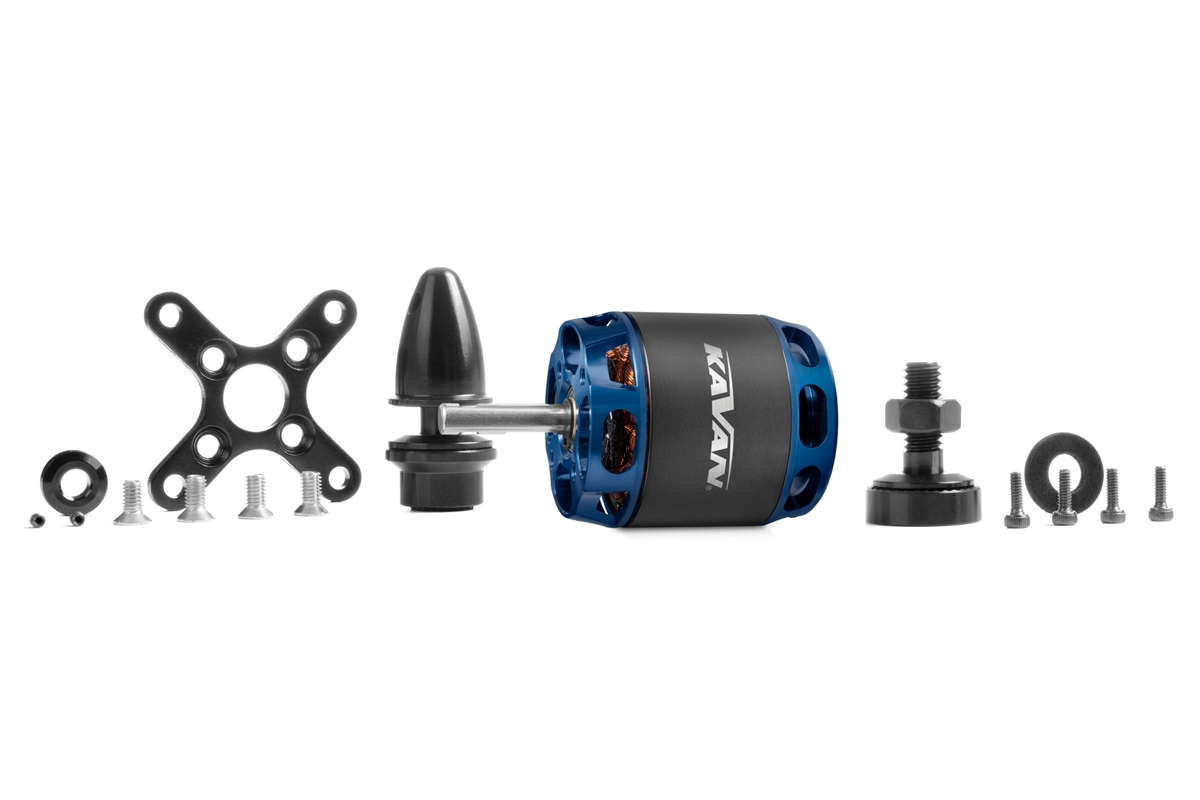

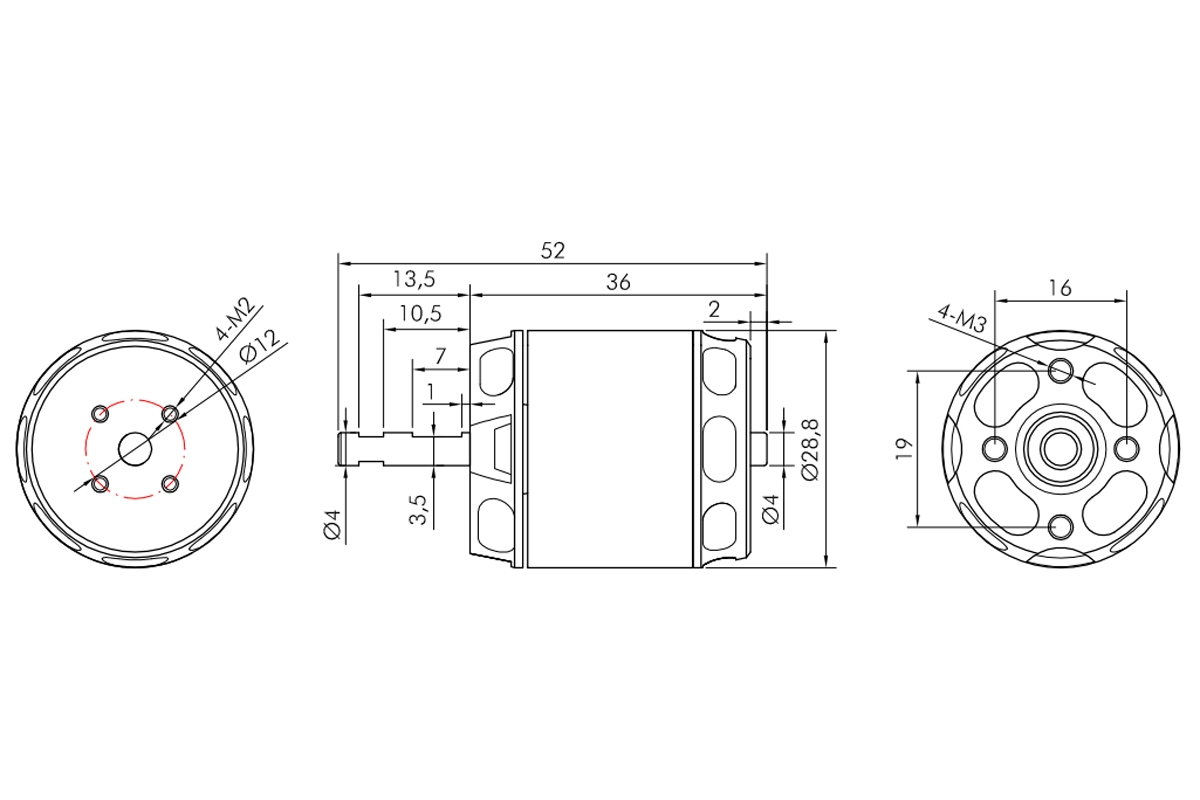

KAVAN PRO series motors are high performance 14-pole brushless outrunners. State-of-the-art design, hardened steel shafts, high quality ball bearings, High grade material used for stators and rotors ensure long lifetime and unbeatable performance and high efficiency. KAVAN PRO series motors are low revolution/high torque electric motors capable of swinging large diameter propellers without need for a gearbox. Motor Designation System: PRO xxYY-zzzz PRO - brushless outrunner electric motor xx - motor diameter in mm YY - motor length in mm zzzz - revolution per minute per Volt (RPM/V), “KV“ KAVAN PRO 2836-850 KAVAN PRO 2836-850 is a motor for model aeroplanes up to 1200 g all-up weight powered by 3-4S LiPo flight battery pack. It is great for electric powered gliders like MULTIPLEX® Easy Glider and similar or 3D aerobatic models - it is more suitable for slower models that work better with a larger propeller with lower rpm. Motor installation: KAVAN 2836-850 has been designed both for the front and radial mount installation. Front mount: Use at least two (opposite) or four M3 screws; these may not go deeper than 3-4 mm into the front case. Radial mount: Use four M3 screws to secure the mounting cross to the firewall. The firewall should be made of 2.0-2.5 mm plywood. The radial mount set is supplied with the motor. The motor set contents: KAVAN PRO 2836-850 motor w. cables (3.5 mm gold-plated connectors), radial mount set accessories. Note: Alternative designation based on the stator dimensions: 2216-850. Powering LiXX cells 3 - 4 RPM/V [ot./min/V] 850 Max. power (180 s) [W] 350 Internal resistance [mOhm] 82 Open-circuit current (při 10 V) [mA] 900 Max. peak current (180 s) [A] 18 Diameter [mm] 28.8 Length [mm] 34 Length celková [mm] 52 Shaft diameter [mm] 4 Weight [g] 79 Poles count 14 Timing [°] 20 - 25 ESC [A] 25 - 35 Weight of glider (up-to) [g] 1050 Weight of trainer (up-to) [g] 900 Weight of acrobat (up-to) [g] 800 Weight of 3D (up-to) [g] 600
