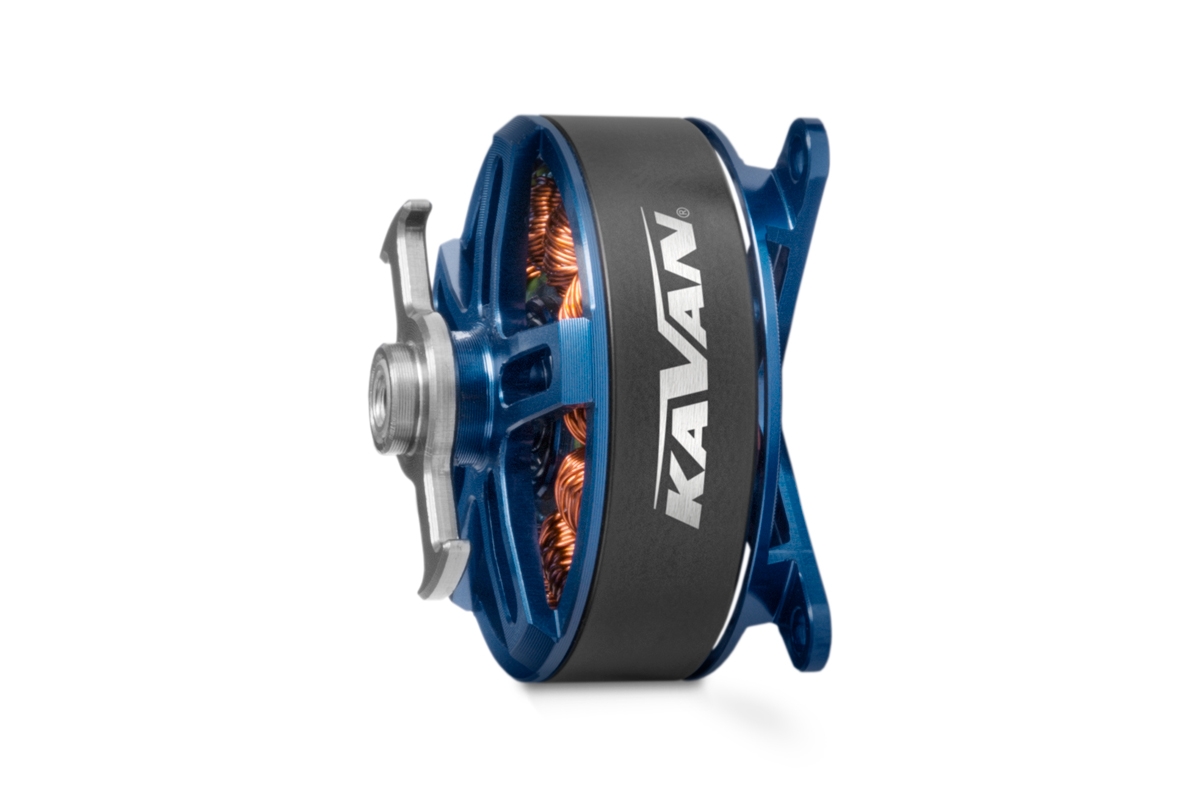

Motor Kavan Pro borstlös 2813-1500kv

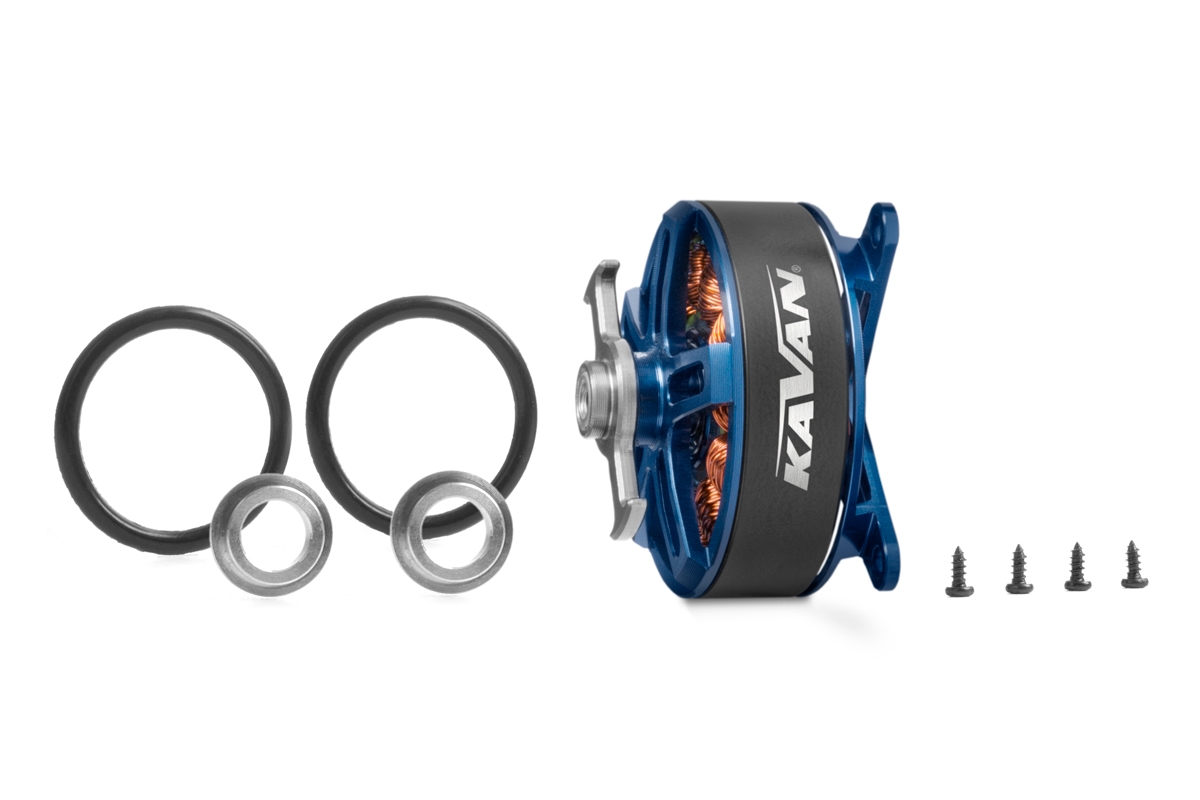

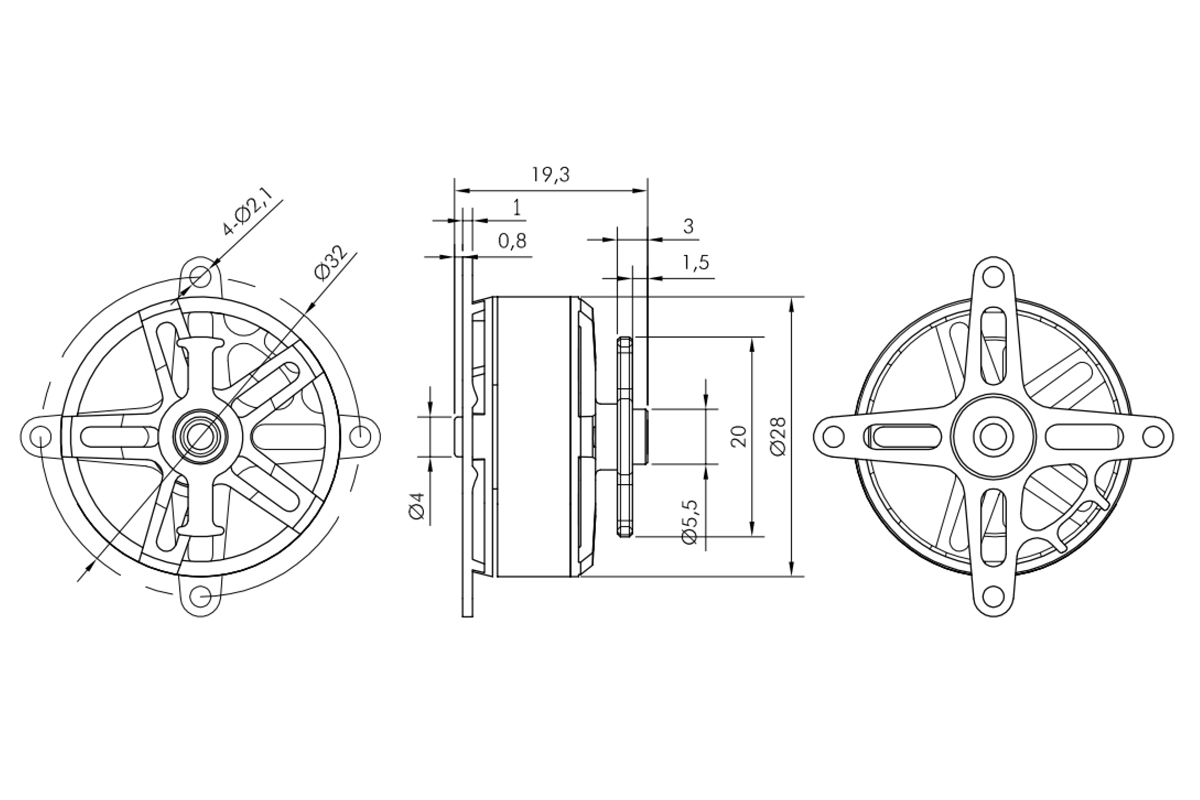

KAVAN PRO series motors are high performance 14-pole brushless outrunners. State-of-the-art design, hardened steel shafts, high quality ball bearings, High grade material used for stators and rotors ensure long lifetime and unbeatable performance and high efficiency. KAVAN PRO series motors are low revolution/high torque electric motors capable of swinging large diameter propellers without need for a gearbox. KAVAN PRO 2813-1500 KAVAN PRO 2813-1500 is a miniature motor for small model aeroplanes up to 300 g all-up weight powered by 2-3S LiPo flight battery pack. It could used be for “electrification” of rubber powered planes from of Guillow’s or Dumas kits (up to 1200 mm wingspan), it works great with indoor models, Dumas RC park-flyer kits and similar. Motor installation: KAVAN 2813-1500 has been designed for the radial mount installation only using 5.5 mm prop saver. Use at least two (opposite) or four M2 screws; the firewall should be made of 1.0-1.5 mm plywood. The cross mounting lugs are an integral part of the motor. The motor set contents: KAVAN PRO 2813-1500 motor w. cables (no connectors), prop saver set accessories. The full instruction manual can be downloaded here: KAVAN PRO Brushless Motors Instruction Manual Note: Alternative designation based on the stator dimensions: 2206-1500. Powering LiXX cells 2 - 3 RPM/V [ot./min/V] 1500 Max. power (180 s) [W] 170 Internal resistance [mOhm] 96.5 Open-circuit current (při 10 V) [mA] 700 Max. peak current (180 s) [A] 15 Diameter [mm] 28 Length [mm] 13.3 Length celková [mm] 19.3 Shaft diameter [mm] 4 Weight [g] 27.6 Poles count 14 Timing [°] 20 - 25 ESC [A] 15 - 20 Weight of glider (up-to) [g] 300 Weight of trainer (up-to) [g] 280 Weight of acrobat (up-to) [g] 250 Weight of 3D (up-to) [g] 200
