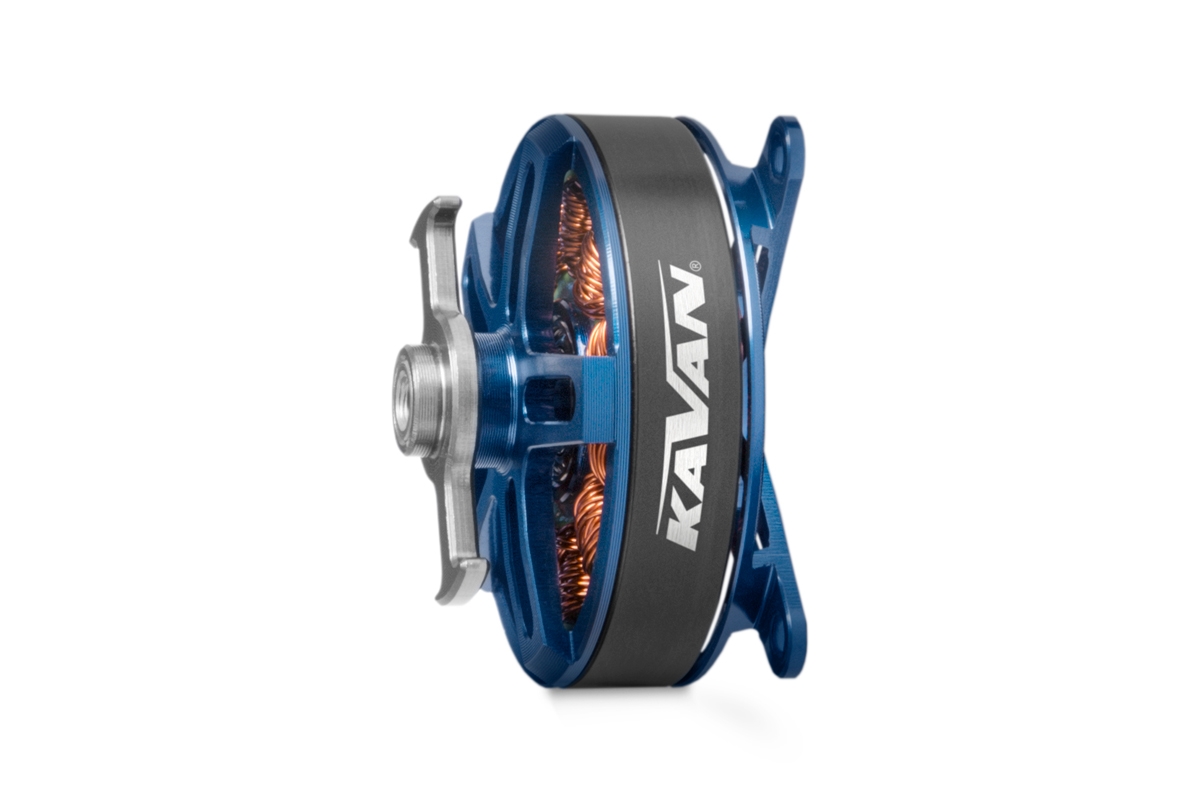

Motor Kavan Pro borstlös 2811-1800kv

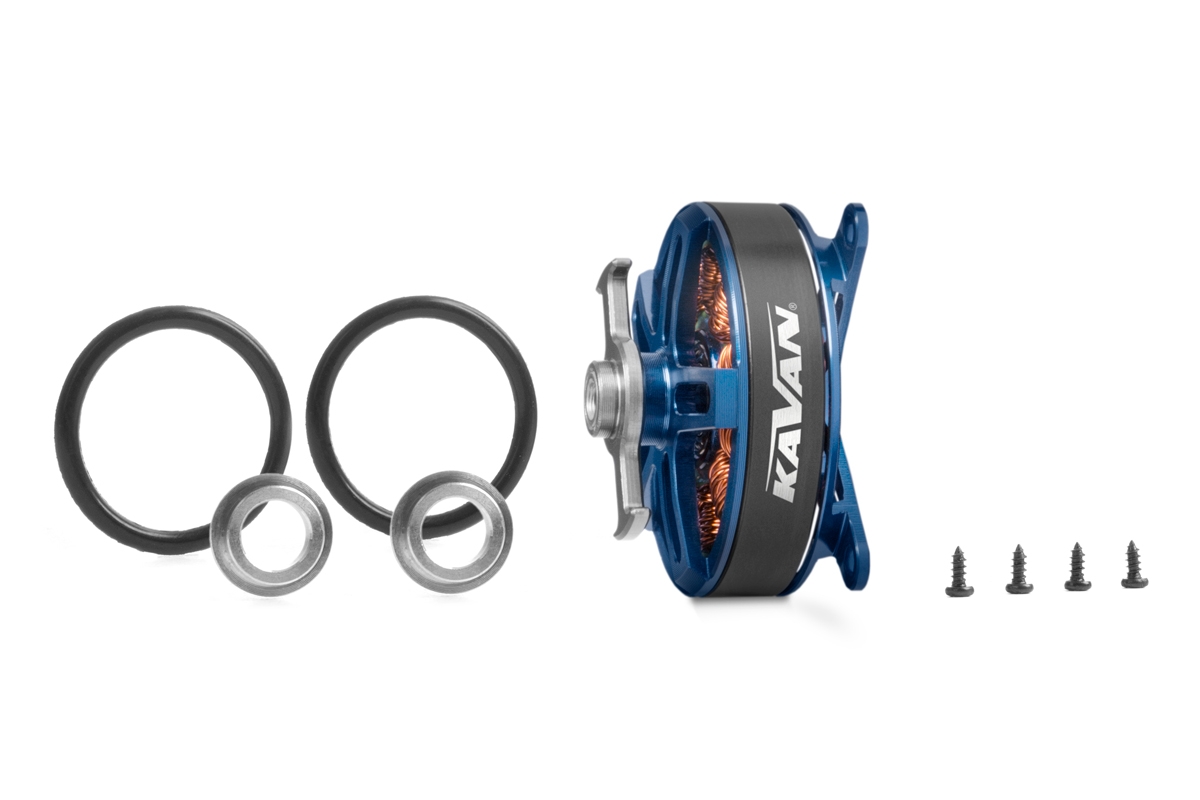

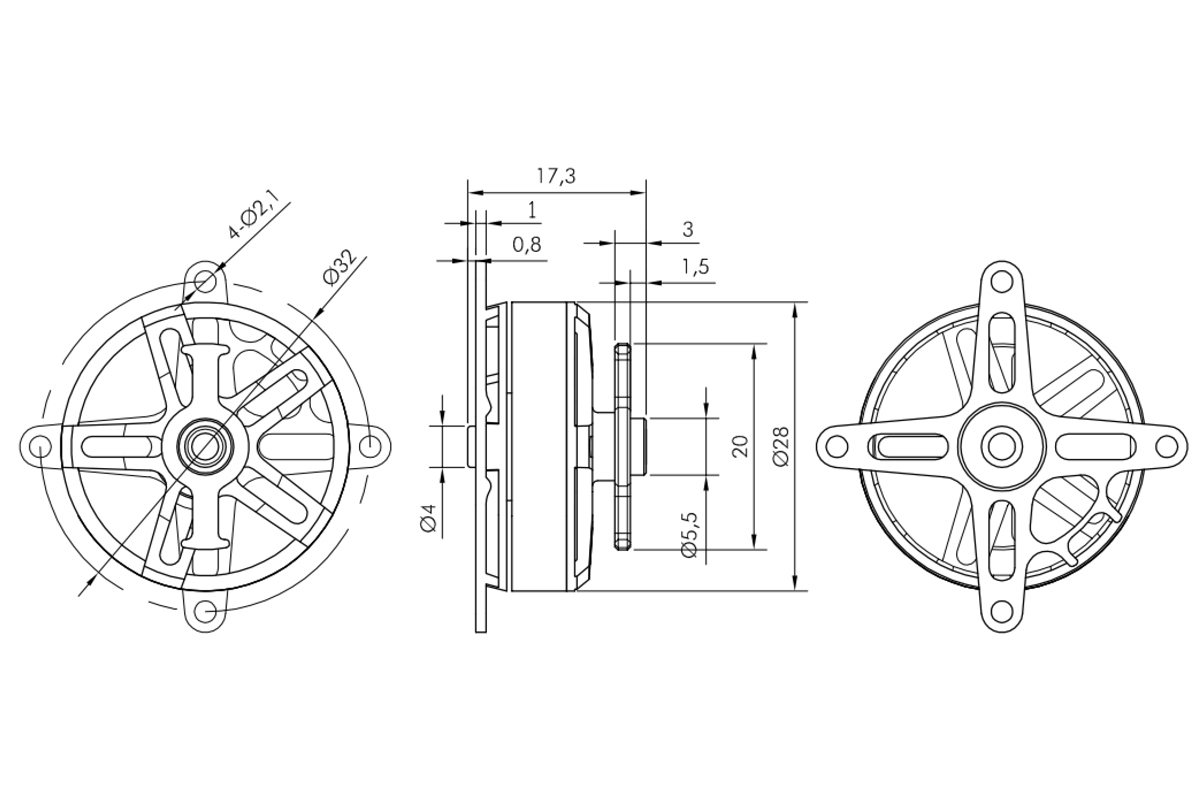

KAVAN PRO series motors are high performance 14-pole brushless outrunners. State-of-the-art design, hardened steel shafts, high quality ball bearings, High grade material used for stators and rotors ensure long lifetime and unbeatable performance and high efficiency. KAVAN PRO series motors are low revolution/high torque electric motors capable of swinging large diameter propellers without need for a gearbox. KAVAN PRO 2811-1800 KAVAN PRO 2811-1800 is a miniature motor for small model aeroplanes up to 250 g all-up weight powered by 2-3S LiPo flight battery pack. It could used be for “electrification” of rubber powered planes from of Guillow’s or Dumas kits (up to 1000 mm wingspan), it works great with indoor models and park-flyers. Motor installation: KAVAN 2811-1800 has been designed for the radial mount installation only using 5.5 mm prop saver. Use at least two (opposite) or four M2 screws; the firewall should be made of 1.0-1.5 mm plywood. The cross mounting lugs are an integral part of the motor. The motor set contents: KAVAN PRO 2811-1800 motor w. cables (no connectors), prop saver set accessories. The full instruction manual can be downloaded here: KAVAN PRO Brushless Motors Instruction Manual Note: Alternative designation based on the stator dimensions: 2204-1800. Powering LiXX cells 2 - 3 RPM/V [ot./min/V] 1800 Max. power (180 s) [W] 110 Internal resistance [mOhm] 138 Open-circuit current (při 10 V) [mA] 500 Max. peak current (180 s) [A] 13 Diameter [mm] 28 Length [mm] 11 Length celková [mm] 17.3 Shaft diameter [mm] 4 Weight [g] 20 Poles count 14 Timing [°] 20 - 25 ESC [A] 15 - 20 Weight of glider (up-to) [g] 250 Weight of trainer (up-to) [g] 250 Weight of acrobat (up-to) [g] 200 Weight of 3D (up-to) [g] 150
